How to Test Power Shelf
Comprehensive AC/DC power source and load emulation for testing power shelf in AI data center
Testing Solutions for AI Data Center Sub-System
How Do Power Shelf Work for AI Data Center?
Roles and Functions of Power Shelf
3AI server powered by GPUs in hunger of energy relies on power shelf which acts as the central energy conversion hub of the server rack which supports the server's load handling, often exceeding 100kw per rack. The power shelf in an AI server rack assumes various roles to proceeding the power from upstream transformer to transfer it into a form that matches the server's utilization, in detail the steps include:- High-Voltage AC/DC Conversion: Supply from mid-voltage grid of usually 10kV or 35kV is regulated into 400 or 480 VAC through converter is further transformed by power shelf into a stable and high-current 54V or 48VDC output for powering the server.
- Busbar Power Distribution: Power shelf minimizes \(I^2R\) conduction losses and simplify thermal management through a heavy-duty vertical copper busbar at the rear of the rack instead of a mess of cables.
- Dynamic Load Management: Power shelf integrates Power Management Controller (PMC) which monitors server's real-time demand during idle periods by training spikes by either ensuring peak power delivery or shedding phases and forcing modules into sleep mode to maintain optimal operation efficiency.
Implications for Power Testing
Given its role as the single point of convergence for an entire AI rack, the Power Shelf’s reliability is the bedrock of data center uptime. In an AI cluster, a sub-millisecond power glitch doesn't just reboot a server; it can crash a distributed training job costing millions in compute time. This mission-critical role introduces several sophisticated testing challenges that demand high-precision power instrumentation:
- Extreme Current Demands: Transitioning from idle to full AI workload requires the Power Shelf to handle massive \(di/dt\) (current slew rate) without voltage drops.
- Redundancy & Hot-Swap: Testing must verify that\( N+1\) or \(N+N\) configurations can seamlessly take over if a module fails.
- Grid Interaction: High-power rectification can introduce total harmonic distortion (THD) against which power shelf should ensure input-side quality for stable server operation.
Growing Force in AI Data Center Testing Solutions
Emerging in AI Data Center Testing with 30 Years of Power Expertise and Rapid Solution Deployment Capability

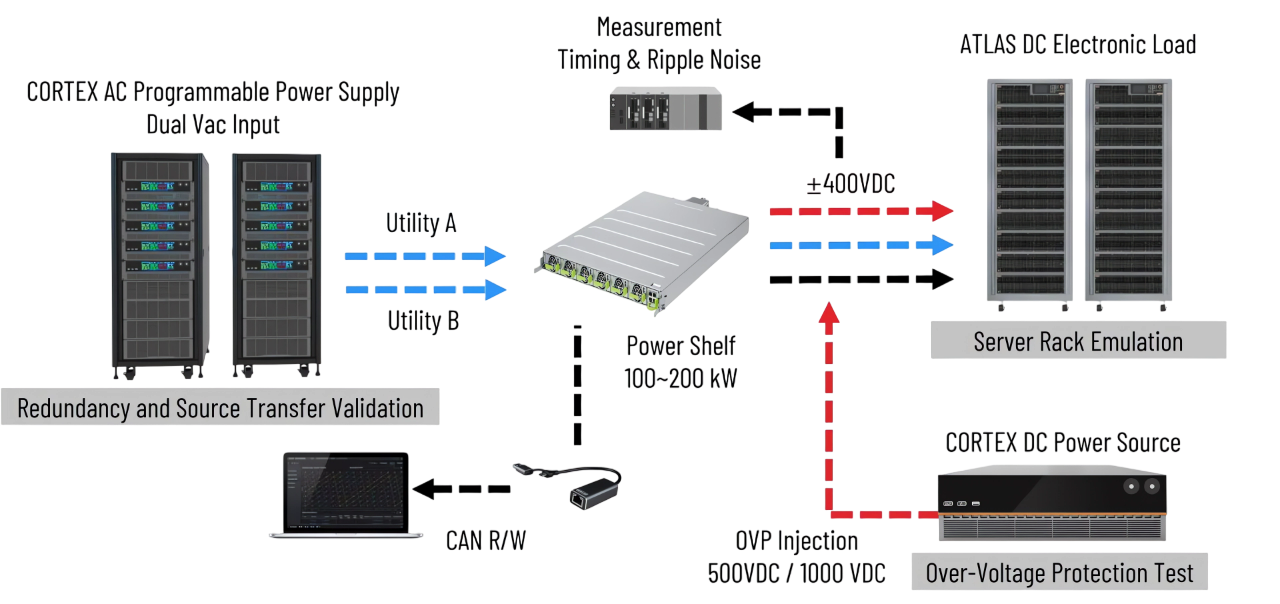

Power Testing for Power Shelf and Technical Challenges
Testing challenges for power shelf's AC input side involve grid resilience and high-efficiency verification. The programmable AC power supply or grid simulator should be able to create controlled environment where software-sequenced voltage sags, frequency sweeps, and harmonic distortion profile are generated to test and quantitatively measure the rectification stage's immunity to grid instability.
A high-precision power measurement unit should be implemented simultaneously to mapping across all load points for monitoring the conversion stages whose efficiency should be in compliance with rating such as 80 Plus Titanium and keeping unwanted components such as harmonics under regulatory limits.
Programmable power for power shelf's DC-bus should replicate server load for validating load-sharing capability and transient response of the same. Load emulation requires a high-precision and dynamic electronic DC load parallelled to match the system's full-rack capacity and isolates the control loop’s performance during simulated PSU failure or hot-swap events. Testing engineers can acquire empirical data on the module’s load-sharing capabilities to improve AI server's workload responses for future real operating scenario deployment.
Apart from load emulation, power testing for power shelf's coordination with AI server requires as well a programmable DC source which injects voltage higher than the rated output for triggering OVP condition and reverse-current testing so that engineers can precisely trigger and verify the shelf's OVP thresholds and ORing isolation logic.
